Modern 1-Bedroom ADU
Floor Plan Overview: 840 SF, 1-Bed / 1-Bath

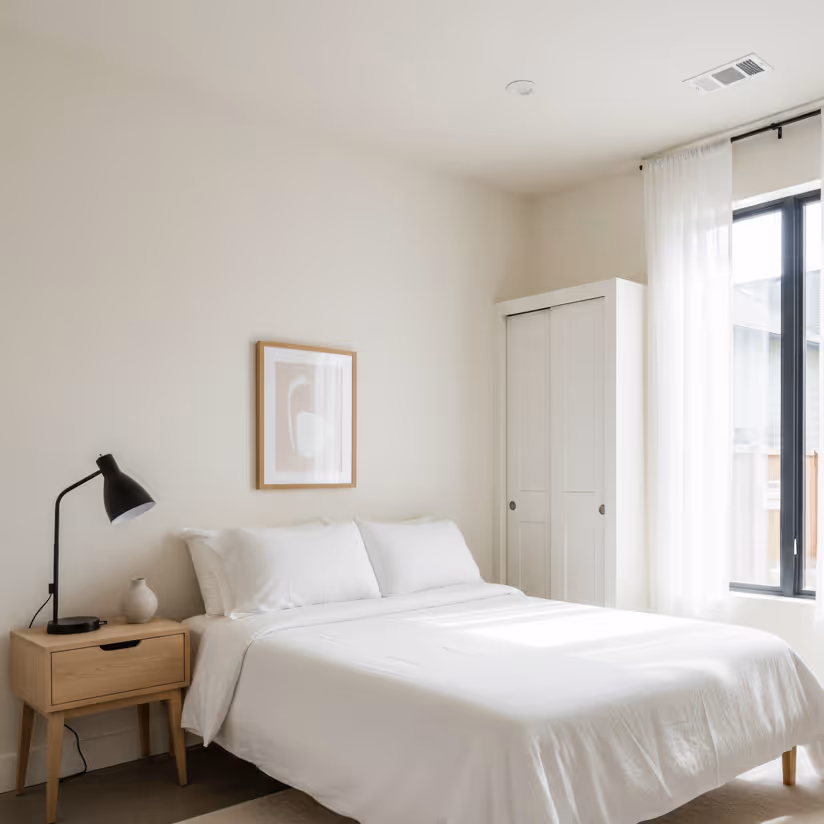

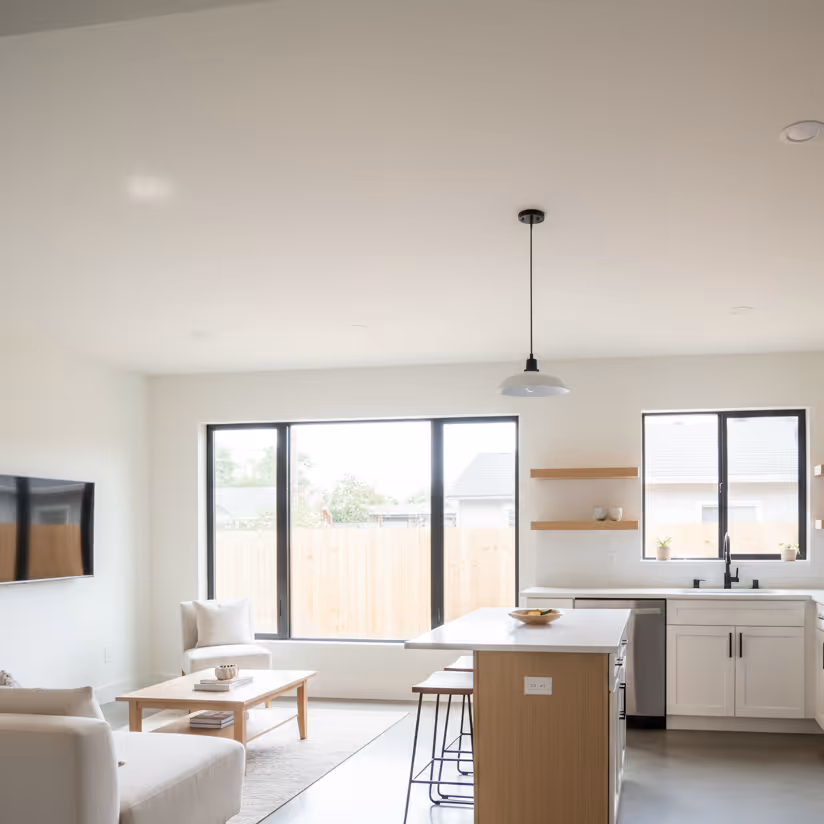

The interior spans 840 square feet arranged around a central kitchen and living area. The kitchen (225 SF) features a large island with seating, stove top, and wall oven. The open living room (280 SF) connects directly to the back patio. The bedroom (130 SF) includes a dedicated closet, and the full bathroom (65 SF) is fitted with a glass shower enclosure. A mechanical and laundry room (50 SF) rounds out the interior. A 185 SF front patio and 220 SF rear patio extend the usable living space outdoors.
To see similar ADUs, check here for more information.
Construction & Design Details
The exterior combines 1×6 vertical siding with 2×4 running bond siding and metal fascia under a shed-style exposed rafter roof with standing seam metal roofing. The structure is built on a 4" radiant concrete slab over rigid foam insulation, with 2×6 stud framing at 16" on center. Open 3×12 beams rest on 12×12 posts, giving the interior a clean structural aesthetic. All four exterior elevations include gutters and downspouts, and the roof design accommodates optional water collection or solar panels.
For more details on local ADU regulations, visit our local regulations page:
Is This Plan Right for You?
Our curated ADU plans offer several advantages:
• Faster Permitting: These plans are designed to meet local codes, helping reduce approval times.
• Lower cost: Skip custom design fees with professionally designed layouts tailored to local requirements.
• Simplified Process: These plans eliminate much of the uncertainty in the design and permitting stages.
They are a great option for homeowners who want to fast-track the design & permitting process and reduce costs. However, it is important to note that these plans cannot be customized. They are fixed designs intended to simplify and expedite the process, but they do not allow for adjustments such as reconfiguring rooms, resizing, or adding custom features.
If you’re looking for more flexibility, SnapADU offers a variety of semi-custom ADU plans. These designs can be tailored to your property and lifestyle, allowing for adjustments to size, layout, and finishes while still offering the efficiency of a pre-designed structure. Read more about customization paths in our Custom ADU Guide
